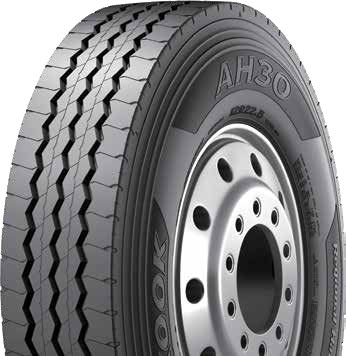

Hankook • AH30
AH30 Truck & Bus Tire — All‑Position Tire for Mixed Regional Duty
Balanced compound • Strong casing • Even-wear pattern and steady handling
- ✅ Tubeless & Tube-type sizes to fit legacy fleets
- ✅ Reliable wet grip and mileage
- ✅ Retreadable casing lowers lifecycle cost
Technical Specifications — AH30
Click a row to select a size and auto-fill the quote form.
“`Tubeless
| Size | PR | Rim (inch) | OD (mm) | Section (mm) | Tread Width (mm) | Tread Depth (mm) | Max Load Single (kg) | Max Load Dual (kg) | Max Pressure Single (kPa) | Max Pressure Dual (kPa) | LI / Speed | Action |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 11R22.5 | 16 | 8.25×22.5 | 1054 | 284 | 225 | 15.5 | 3000 | 2725 | 830 | 830 | 146/143L | |
| 12R22.5 | 18 | 9.00×22.5 | 1054 | 304 | 242 | 17.5 | 3550 | 3250 | 900 | 900 | 152/149L |
Tube Type
| Size | PR | Rim (inch) | OD (mm) | Section (mm) | Tread Width (mm) | Tread Depth (mm) | Max Load Single (kg) | Max Load Dual (kg) | Max Pressure Single (kPa) | Max Pressure Dual (kPa) | LI / Speed | Action |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8.25R16 | 18 | 6.50×16 | 859 | 238 | 172 | 13.0 | 2000 | 1800 | 860 | 860 | 132/128M | |
| 7.50R20 | 16 | 5.50×20 | 936 | 211 | 148 | 13.0 | 1900 | 1800 | 830 | 830 | 130/128L | |
| 8.25R20 | 16 | 6.50×20 | 971 | 231 | 166 | 13.5 | 2430 | 2300 | 930 | 930 | 139/137L | |
| 9.00R20 | 18 | 7.00×20 | 1032 | 258 | 193 | 15.5 | 2800 | 2650 | 930 | 930 | 144/142 K/J | |
| 10.00R20 | 18 | 7.50×20 | 1069 | 278 | 213 | 15.0 | 3000 | 2800 | 930 | 930 | 149/146 J | |
| 11.00R20 | 16 | 8.00×20 | 1083 | 296 | 220 | 15.0 | 3350 | 3075 | 830 | 830 | 150/147 K |
Choose Your Size
Selected configuration
Model: AH30 | Size: — |
PR: — |
Rim: — |
OD: — mm |
Section: — mm |
Tread Width: — mm |
Tread Depth: — mm |
Max Load S/D: —/— kg |
Max Pressure S/D: —/— kPa |
LI / Speed: —
We reply within 1–12 business hours
Why AH30
⛽
Fuel-Saving Compound
Lower rolling resistance while balancing wear.
🧱
Reinforced Casing
Supports retreading and heavy-duty usage.
🛞
Even Wear Profile
Optimized blocks for stable handling and long mileage.
FAQ
What’s the delivery time?
Typically 15–20 days depending on sizes and stock.
Can I mix sizes?
Yes, as long as MOQ is met. We can optimize loading.
Do you provide OEM packing?
Yes. OEM/ODM and private label are supported.
AH30 Get the best factory price today.
